Double side adhesive labeling machine with capacity 100BPM for glass bottle
Description:

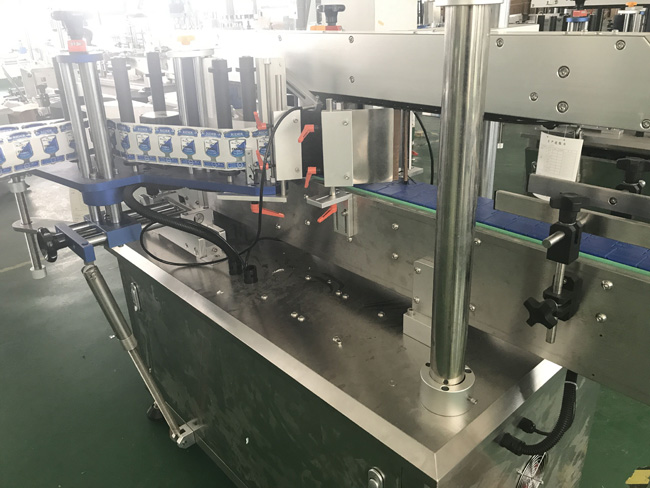

labeling machine mainly consists of main part of the labeling machine,upper pushing structure,adjustment structure,dividing bottles structure,conveyer belting. Control delivering bottles, through human-computer interface. Labeling controlled by photoelectric sensor,through the hairbrush hold the label. The biggest advantage is that every transmission part is controlled by self-contained motor, adjust easily and durable；
Quick Detail:
| Name | Labeling equipment, labeler | Brand Name | Stepchina/Mingstar |
| Capacity | 100 BPM | Material | Stainless steel 304 |
| Function | Bottle labeling | Usage | PET bottle labeling working |
Applications:
1. bottled beverage labeling working.
2. packing bottle with plastic label
Specifications:
| Production Efficiency | 100Bottles/min |
| Input Power | 1.2KW |
| Input Voltage | 220VAC |
| Size of Host Machine | 2700L×1500W×1500H |
| Applicable Diameter of Bottle Body | Diameter from 28 mm to125mm |
| Applicable Length of Label | 30 mm ~ 250mm |
| Applicable Thickness of Label | 0.03 mm ~0.13 mm |
| Applicable Internal Diameter of Paper Tube | 3”~10” adjustment |
1. Configuration:
1. Production Efficiency of Equipment: 100 Bottles/min
2. Single Contraction Label Feeding Tray: Automatically controlled by micro-computer;
Automatic detection & positioning
3. Swift and labour-saving for changing labels
4. Absolutely precise cutting-off position.
2. Applicable Bottle Type:
Various kinds of Bottle types, for example: round Bottle, square Bottle, flat Bottle, curve Bottle and cup-shaped, etc.
